Key Features & Specifications:

Proper material selection to avoid hydrogen embrittlement and special control of the chemical composition to guarantee the valve performance under -253℃ service. These valves are optimized for minimized vaporization and long-term operational reliability. Multiple end connections and structural configurations allow these liquid hydrogen valves to integrate smoothly into hydrogen storage and transfer applications.

• Size Range: ½″ to 6″ (DN15–DN150) Pressure Rating: 150 lb to 600 lb.
• Temperature Range: –253 °C to +120 °C.
• Connection Types: SW (Socket Weld), BW (Butt Weld), RF (Raised Face flange) — compatible with different piping standards.

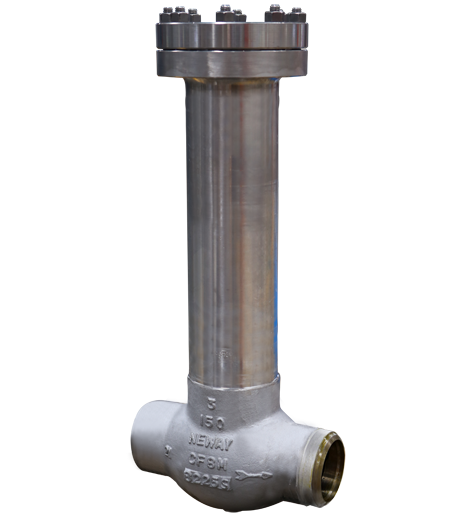

• Structure / Type: Lifting-type check valve with extended, vacuum-jacketed body to reduce thermal ingress.
• Disc & Closure Mechanism: Guided disc with spring-return ensures quick response and prevents jamming.
• Extended Design: PCTFE-incorporated extended stem minimizes vaporization space and prevents freezing in cryogenic service.
• Sealing & Insulation: Vacuum-jacketed construction improves thermal isolation.
• Applications: Liquid hydrogen tanks, transfer pipelines, cryogenic service lines, hydrogen supply systems where dependable liquid hydrogen valves are required.
