Key Features & Specifications:

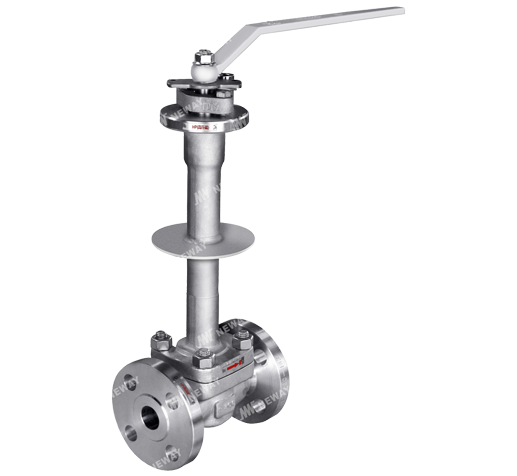

The Neway cryogenic ball valve series is equipped with extension bonnets for reliable packing performance and an anti-static and fire-safe design with precision-guided stems for reduced torque. Complying with BS6364, ASME, and API standards, these valves are well-suited for critical cryogenic applications.

• Size Range: NPS 1/2″ to 3″ (DN 15 to DN 40)
• Pressure Rating: ASME Class 150 to 1500 (PN 16 to PN 250)
• Body Material: Stainless Steel (SS316, CF8M)
• End Connections: RF, BW
• Temperature Range: -196°C to +80°C
• Actuation Options: Manual, Pneumatic, Electric, Hydraulic
• Compliance: BS 6364, ISO 21011, ASME B16.34
• Applications: Oxygen pipelines, ASUs, LNG, industrial gas systems
